High Temperature Hot Melt Colorful Glazed Glass Mosaic Furnace with PID Intelligent Control
| The main technical parameters | |
| Furnace length |
26-60m |
| Chamber width |
500-1500mm |
| Roller diameter |
Ø50mm |
| Temperature control precision |
±1℃ |
| Maximum use temperature |
1000℃ |
| Transfer method |
Helical gear drive |
| Heating mode | Electric heating |
| Control mode | PID intelligent control system, multipoint control |
|
Common temperature |
≤900℃ |
| Daily output (24h) | 50-600 square meters / day |
| Roller speed | Frequency control |
| Roller material | stainless steel rollers and high-temperature ceramic rollers in different parts of the Furnace as required |
| Furnace structure | Modular; on-site assembly |

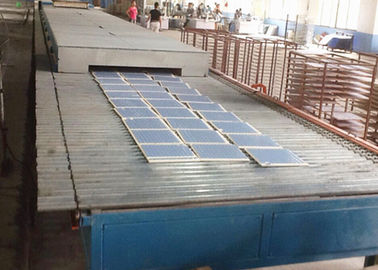

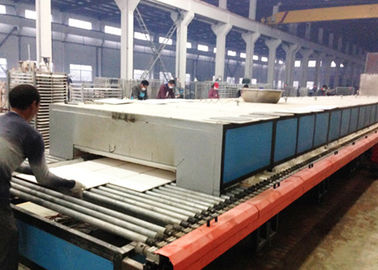

Non-standard customized complete equipment, mainly used for the continuous production of hot-melt color glazed glass mosaic
The colored glazed glass mosaic is made of flat white glass (broken glass) after grinding, filtering, adding certain color materials, stirring and pressing the tablet machine into various sizes of plain tablets, sintering in the furnace, and then forming
The hot-melt color glazed glass mosaic produced by the glass furnace has a strong three-dimensional sense, the color is bright and transparent, and does not fade.
Our company provides a full set of technology and equipment for the production of hot-melt colorful glazed glass mosaics. Please contact us for specific details, we will tailor it for you!
